A considered finish for your outdoor space.

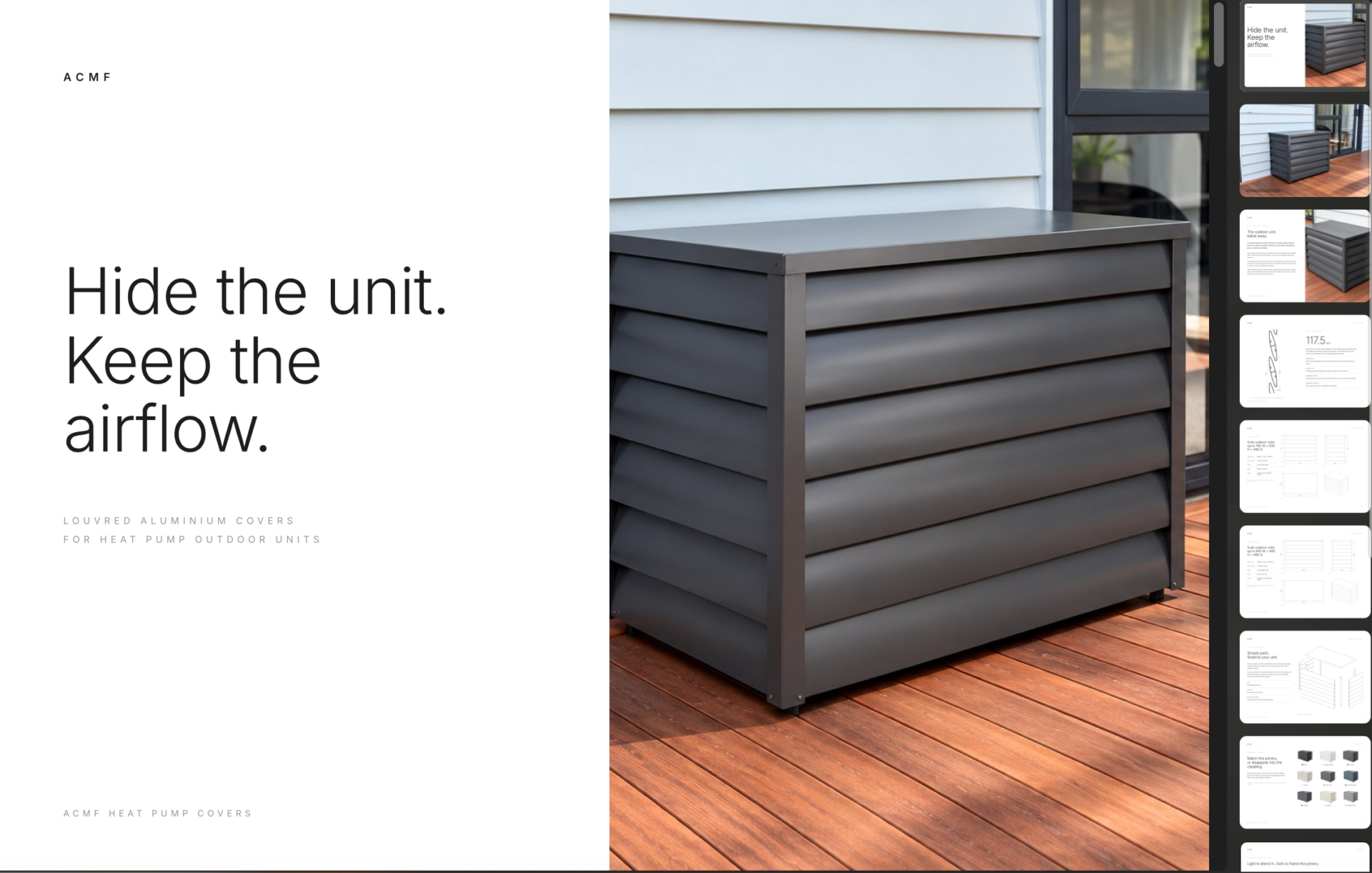

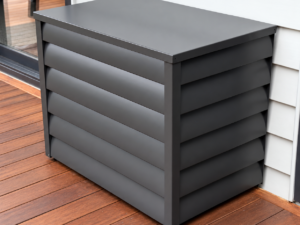

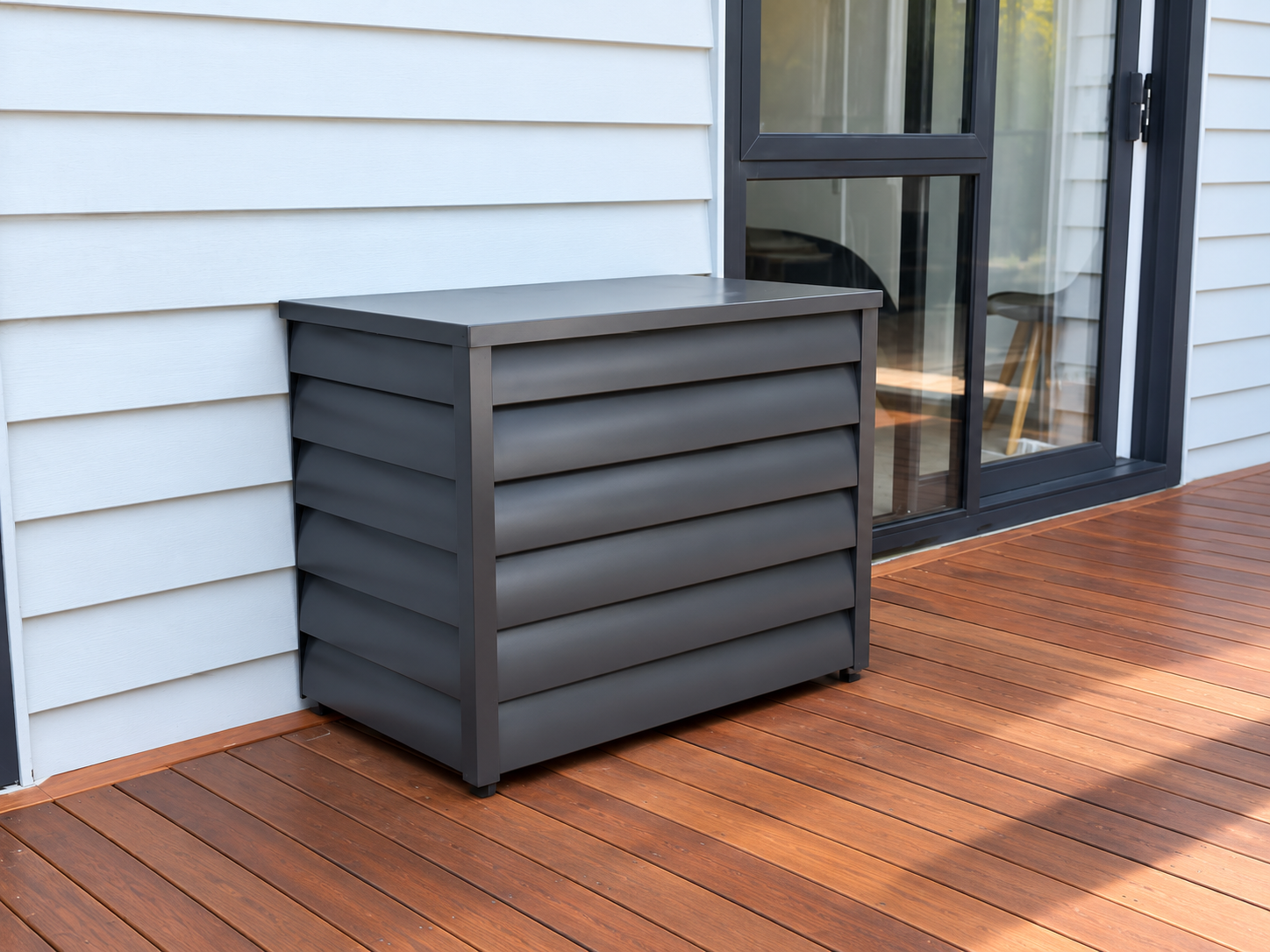

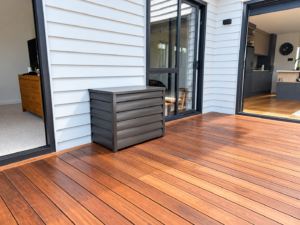

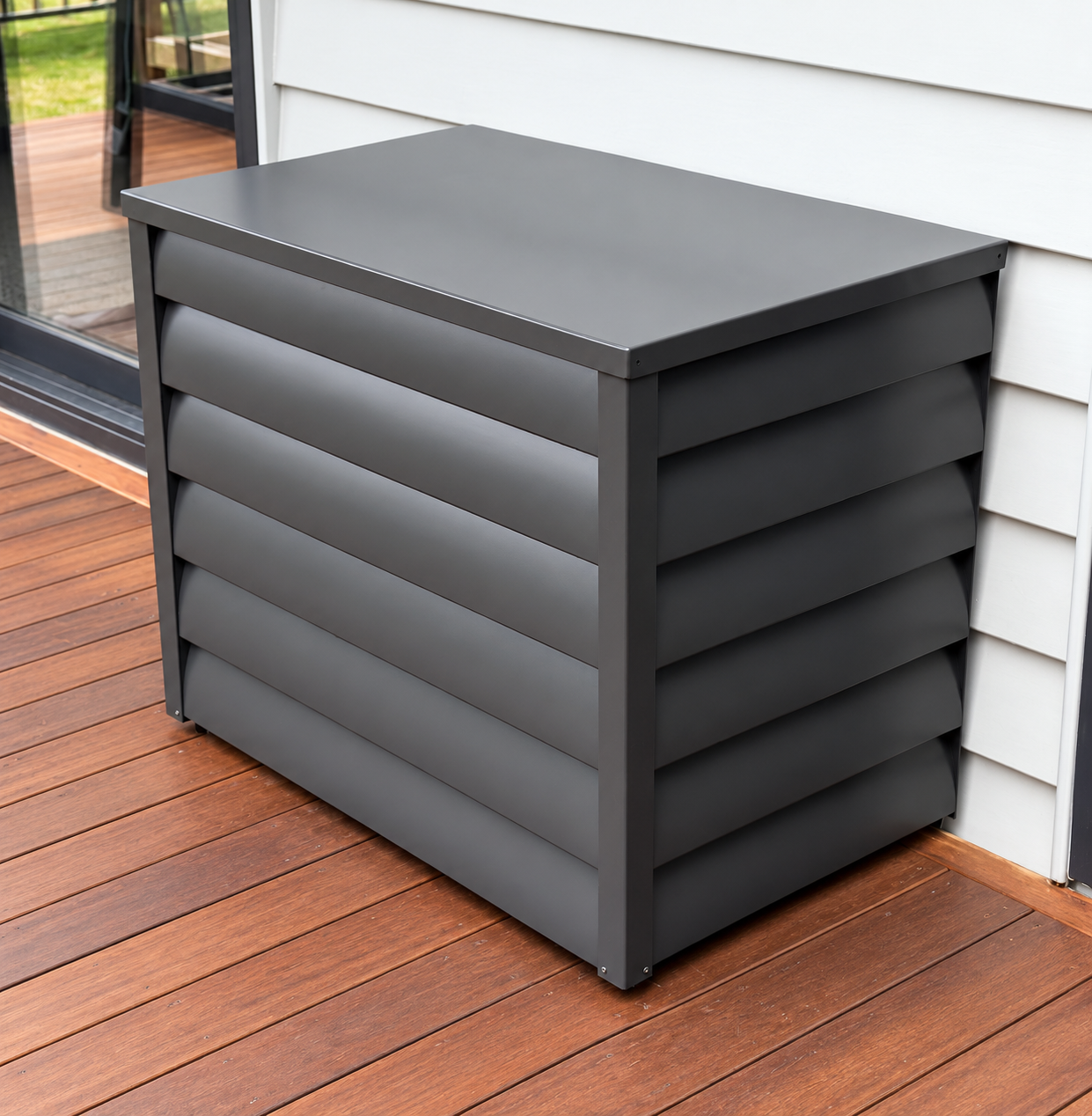

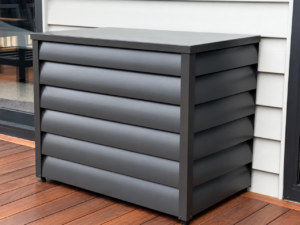

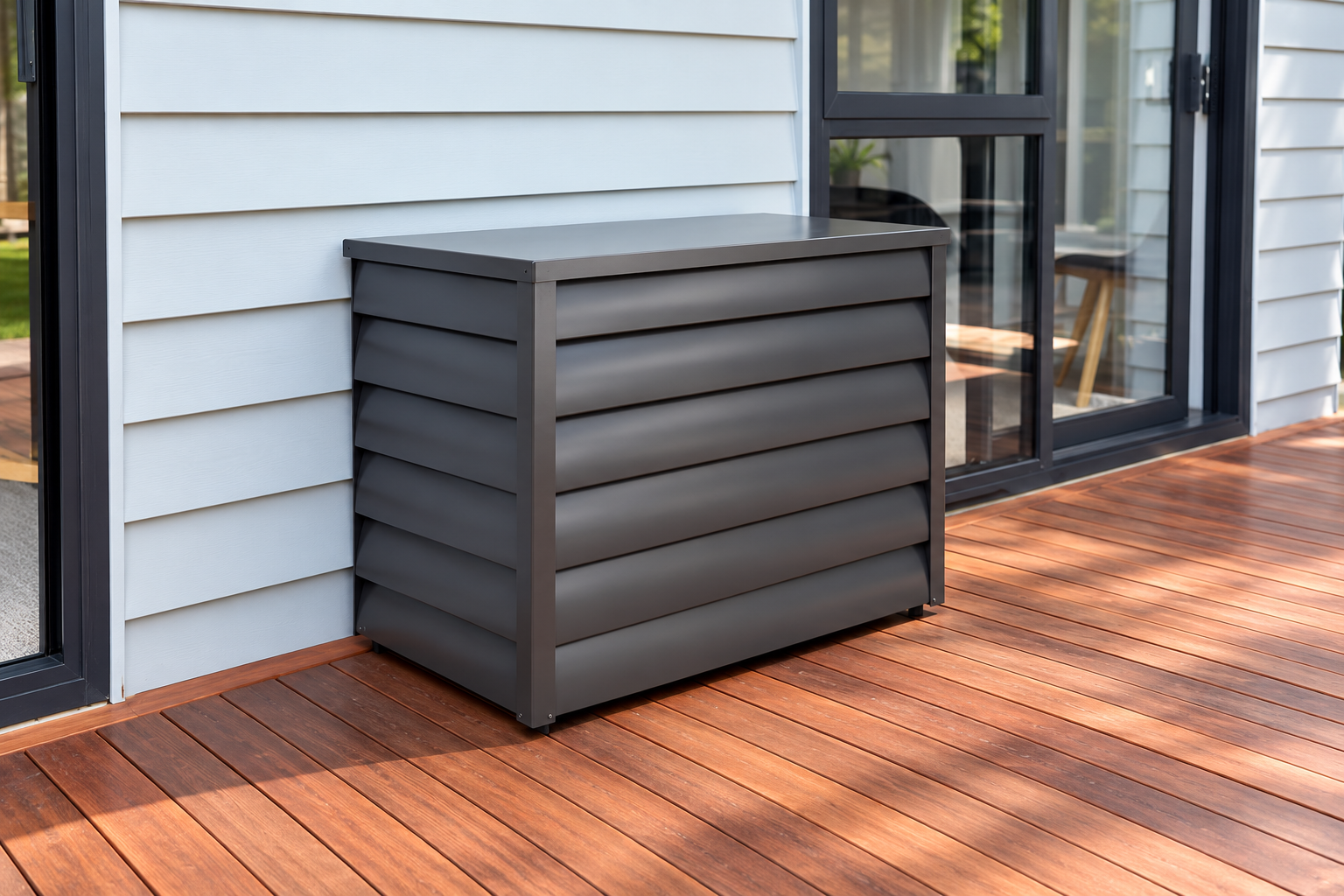

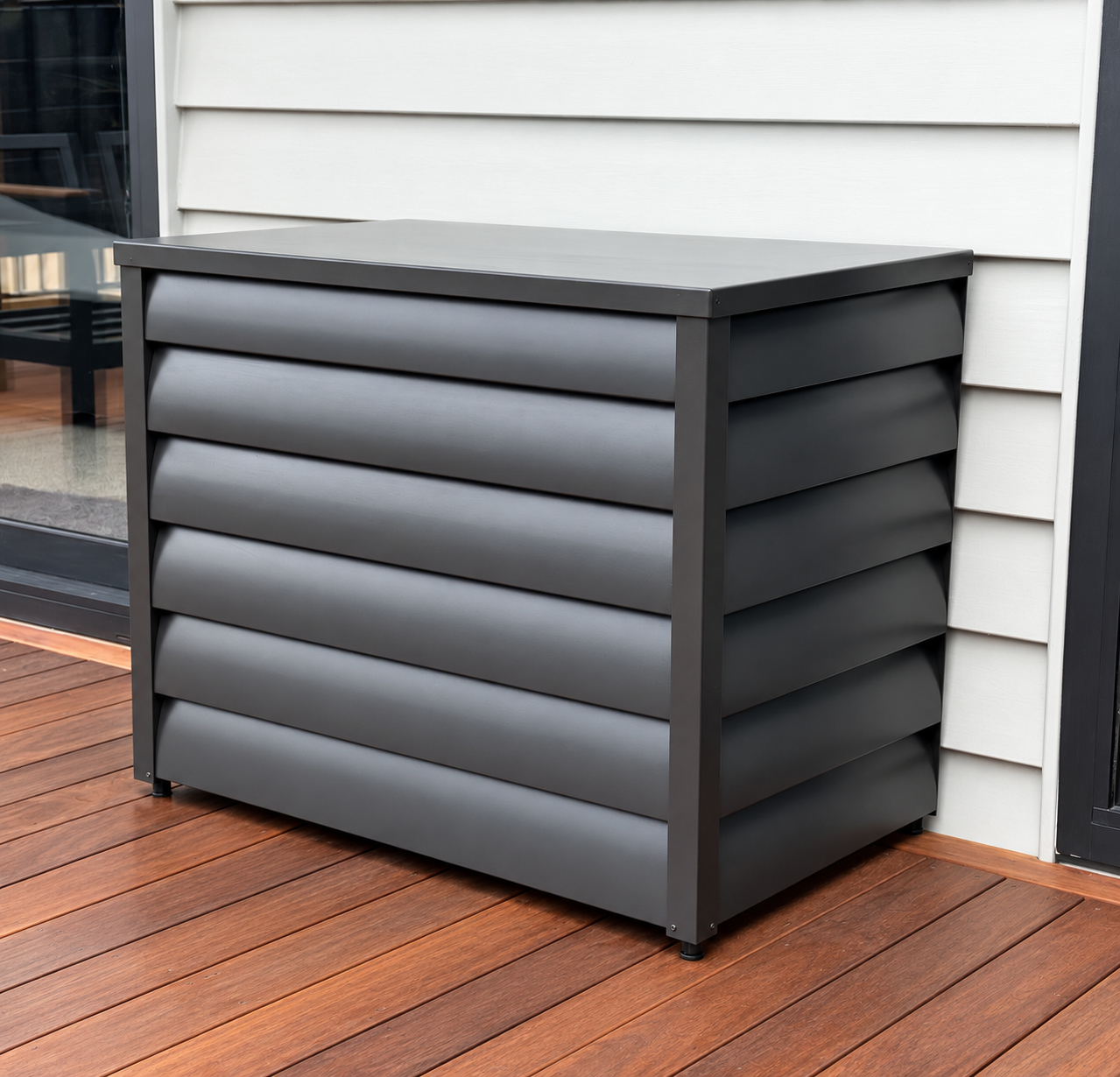

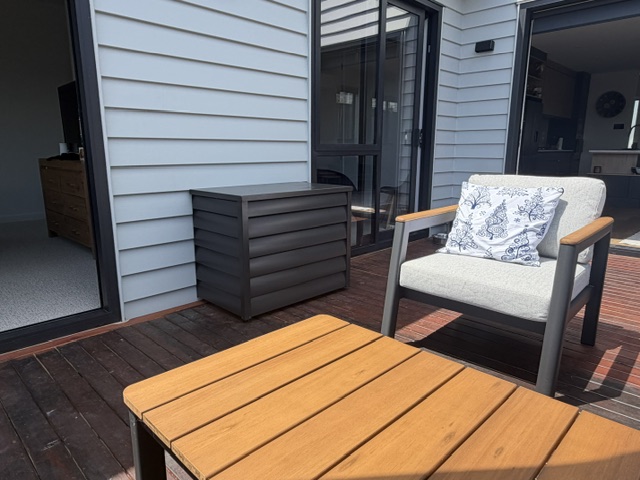

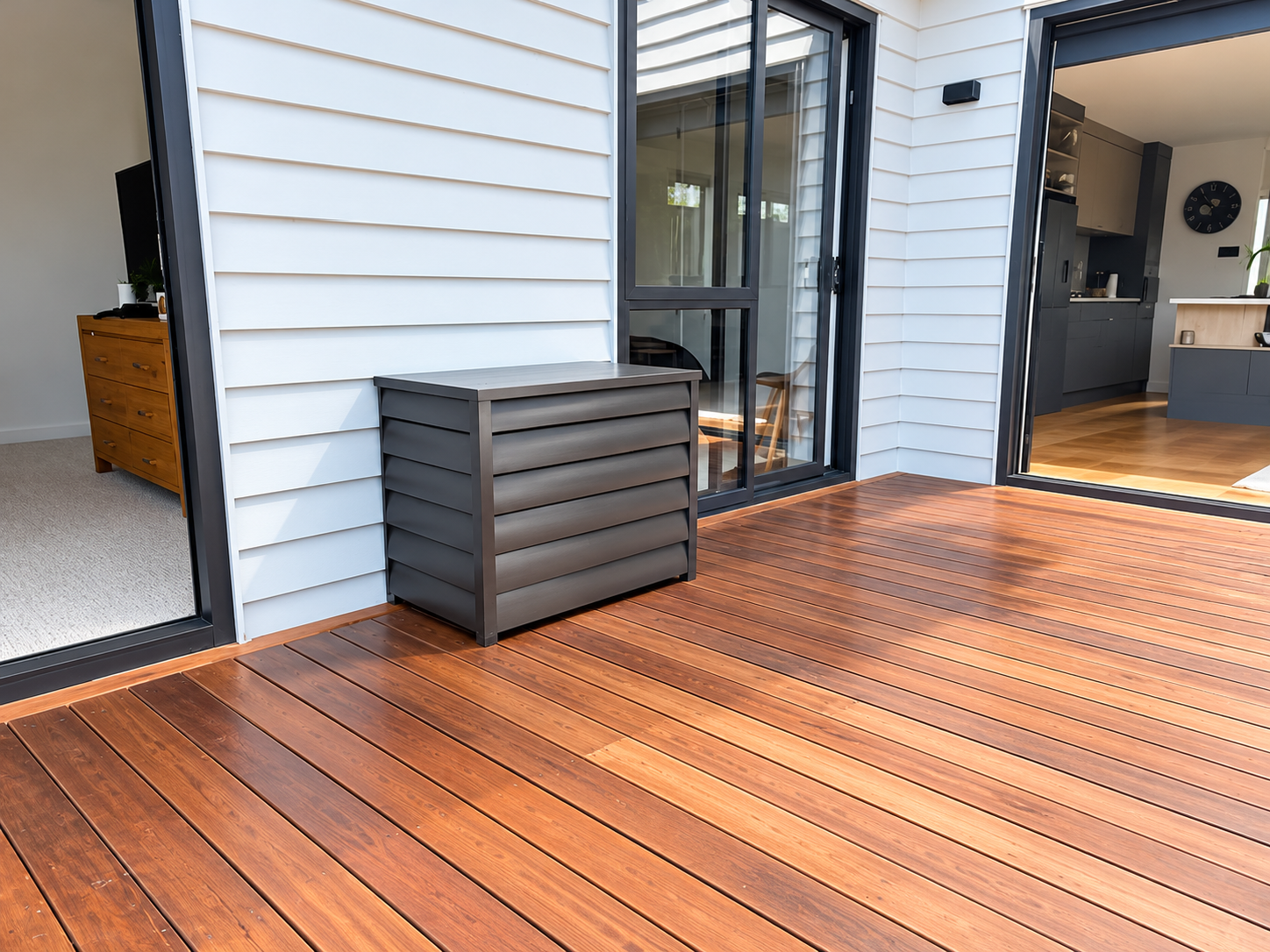

An outdoor heat pump unit shouldn’t detract from the home around it. ACMF’s aluminium heat pump covers screen the machinery behind clean horizontal louvres, creating a more cohesive exterior on decks, beside entrances and beneath windows.

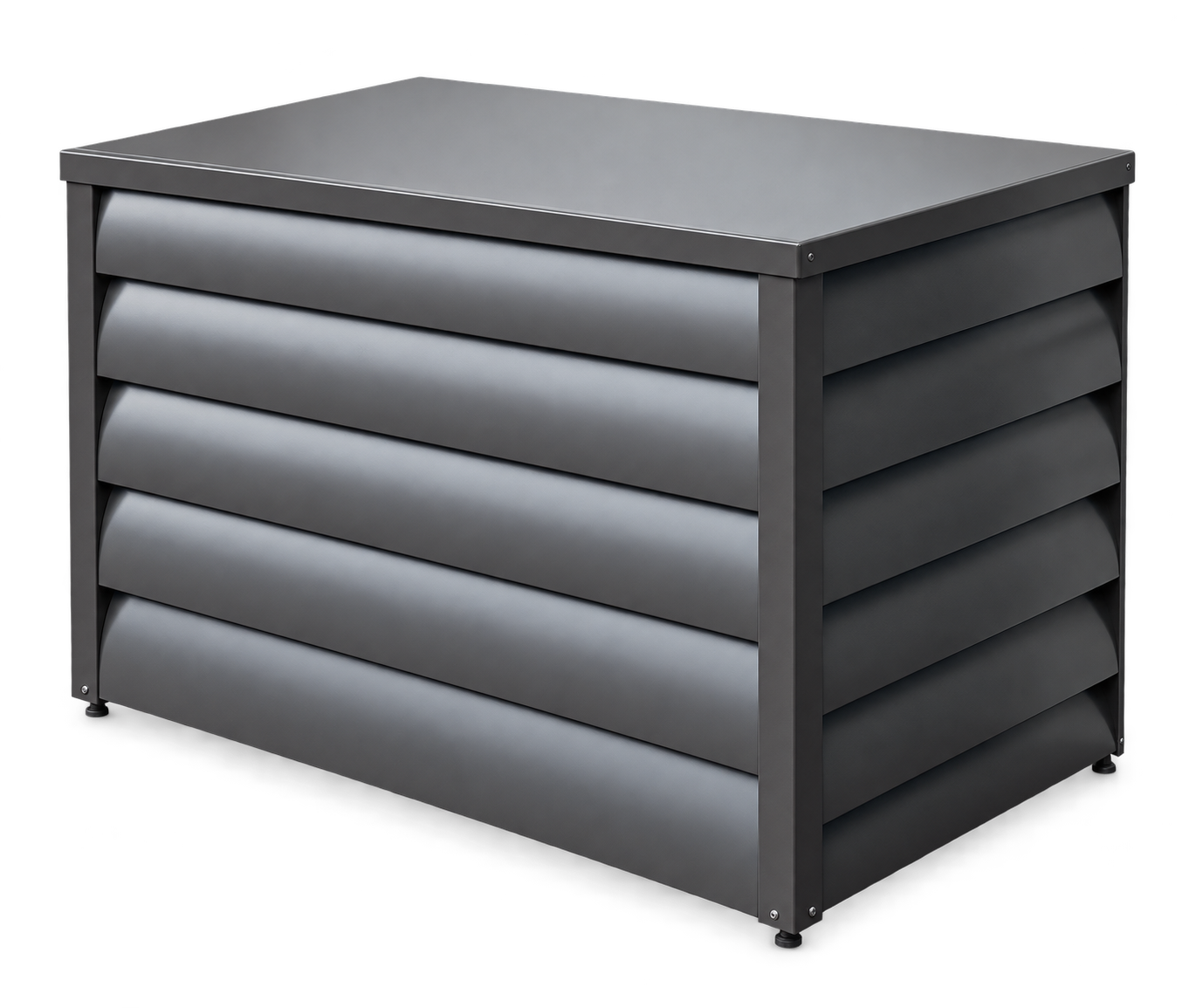

Fabricated in Auckland, each cover combines overlapping aerofoil louvres with a solid aluminium top and a powder-coated finish. Air can pass through the front and both sides, while the open back accommodates a position against the wall.
With two standard sizes and made-to-measure options, we can help you select a cover that suits your unit and complements your home.

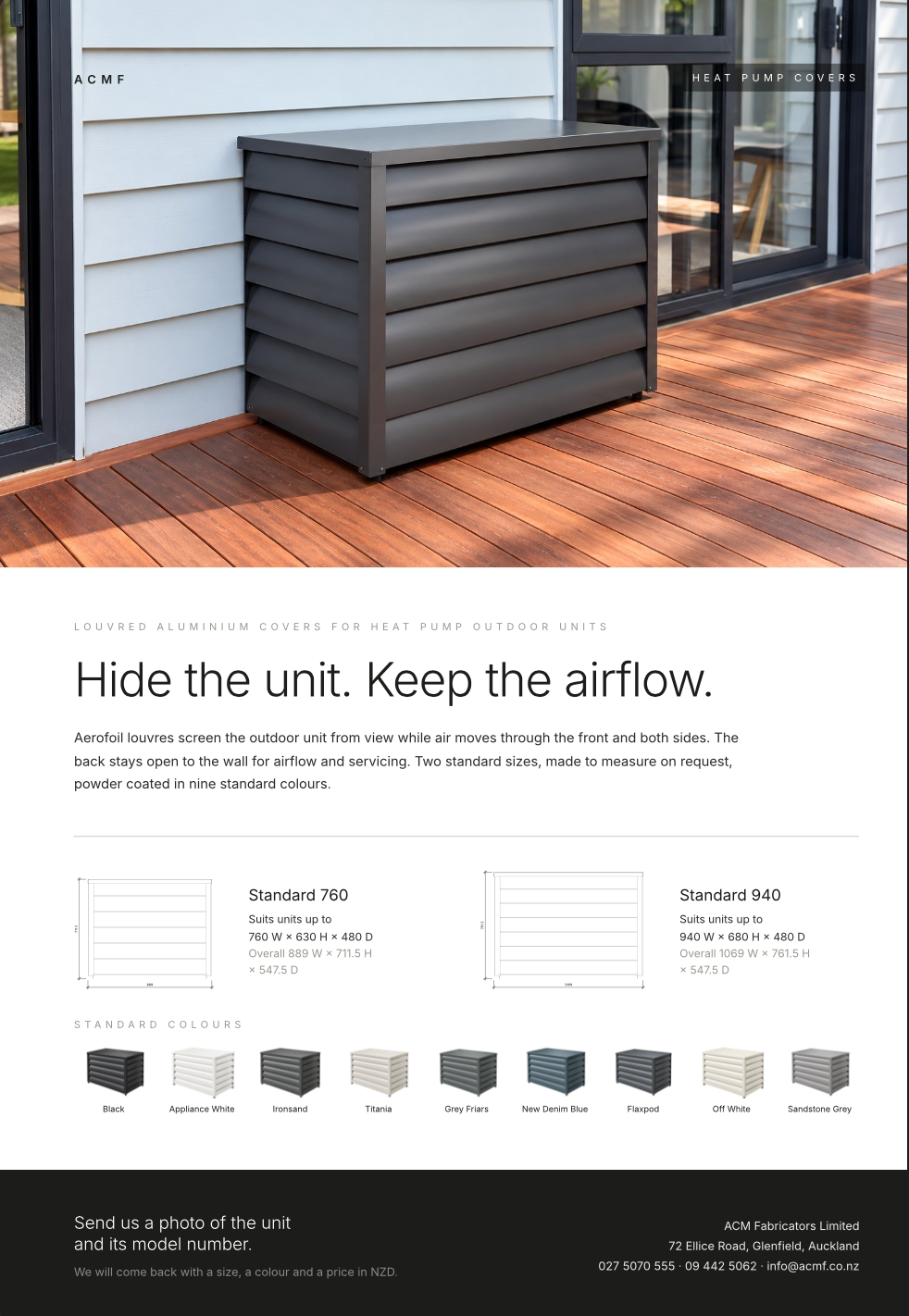

Size options
| Cover |
Suits outdoor units up to |
Overall cover size |
| Standard 760 |
760 W × 630 H × 480 D |
889 W × 711.5 H × 547.5 D |
| Standard 940 |
940 W × 680 H × 480 D |
1069 W × 761.5 H × 547.5 D |
| Made to measure |
Custom sizing to suit your unit |
Confirmed on enquiry |
All measurements are in millimetres. Selection must allow for the heat pump manufacturer’s required airflow and servicing clearances. Share your unit’s make and model with us so we can confirm suitability.
Key features
- Clean architectural appearance: Overlapping horizontal louvres conceal the unit and coordinate with surrounding exterior finishes.

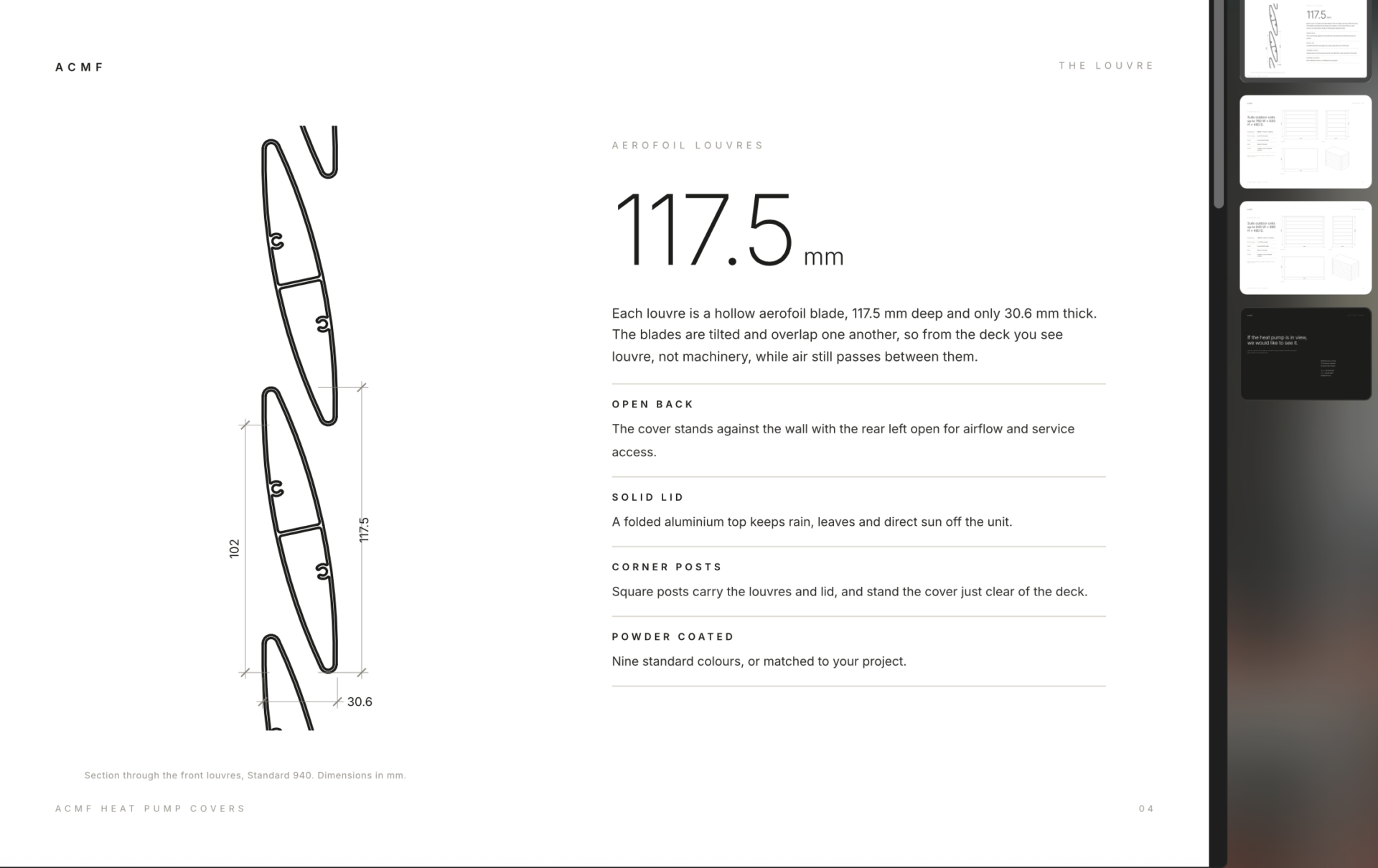

- Airflow-conscious design: Aerofoil blades allow air to pass between the louvres across the front and both sides.

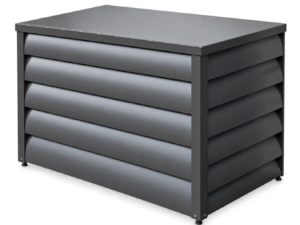

- Aluminium construction: A folded aluminium lid and square corner posts support the front and side louvre panels.
- Solid top: Helps shield the unit from rain, leaves and direct sunlight.

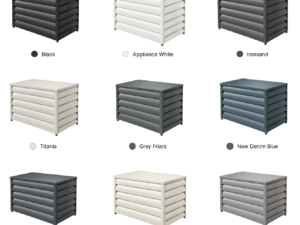

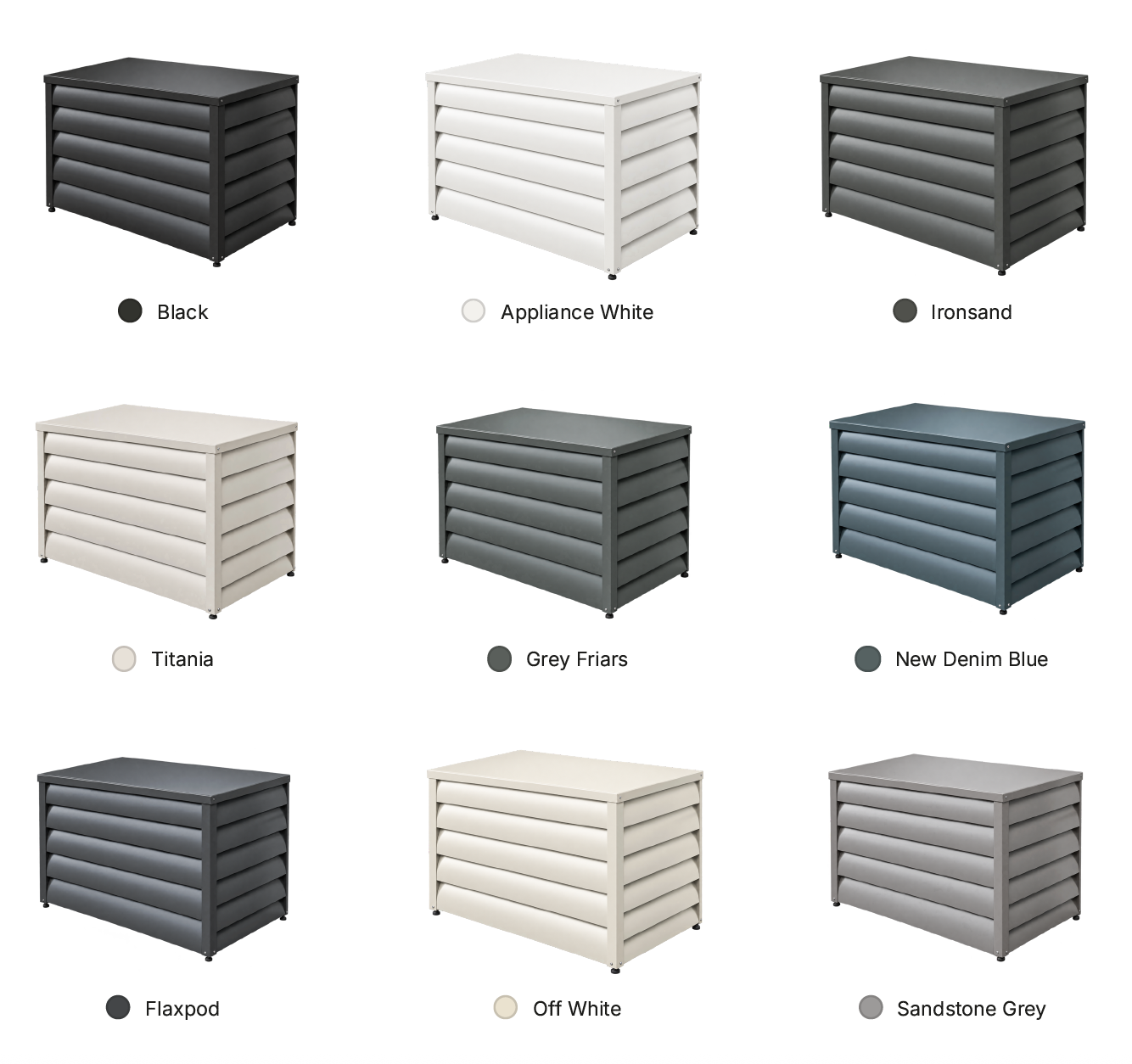

- Coordinated colour: Nine standard powder-coat colours, with other colours available on request.
- Standard or custom sizing: Choose an existing size or have a cover fabricated to suit your unit.
- Made in Auckland: Cut, assembled and powder coated by ACMF.
Made to measure
If your unit needs a wider, taller or deeper cover, ACMF can fabricate a custom size. Send us the unit’s make and model, its dimensions and a photo of the location, and we’ll confirm a suitable option.
Request a quote
Send us a photo of your outdoor unit, its model number and your preferred colour. We’ll come back with a recommended size, price and lead time.
info@acmf.co.nz | 09 442 5062
